UVS 402/403 Powder-Coated Shaft
The UVS 402 and 403 represent UKIO's architectural elevator range — where structural design and vertical mobility are unified. The powder-coated shaft becomes a visual element within the space itself, while Moris Italy drive technology and GMV Italy controls ensure world-class reliability beneath the surface. Available in pitless and standard headroom configurations.
| Parameter | Specification |
|---|---|
| Drive Partner | Moris Italy |
| Controls Partner | GMV Italy |
| Shaft Type | Powder-Coated Architectural |
| UVS 402 Feature | Pitless Design |
| UVS 403 Feature | Headroom-Free Design |
| Glass Options | Panoramic / Standard |
| Certification | EU Machinery Directive 2006/42/EC |
| Smart Platform | Smart Light IoT Ready |
UHS 505 Commercial Traction
The UHS 505 is UKIO's heavy-duty commercial elevator — engineered for high-traffic environments like hospitals, hotels, commercial towers, and large residential complexes. Its rope drive traction system delivers high-speed, high-capacity performance with the reliability demanded by critical applications where elevator downtime is simply not an option.
| Parameter | Specification |
|---|---|
| Drive System | Rope Drive Traction |
| Speed | 0.5 m/s – 1.5 m/s |
| Rated Load | Up to 1788 kg |
| Max Stops | 11 Stops |
| Motor Type | PMSM Gearless |
| Energy Recovery | Regenerative VF Drive |
| Overhead Req. | Standard Machine Room / MRL |
| Certification | EN 81-1 / EU 2006/42/EC |
ICON 101
The ICON 101 is UKIO's signature statement piece — a circular panoramic elevator that transforms vertical transportation into a visual experience. Installed in luxury villas, designer restaurants, and high-end commercial lobbies, the ICON 101's cylindrical cabin and full-glass shaft create an architectural centrepiece that is unlike anything else in the Indian elevator market.
| Parameter | Specification |
|---|---|
| Drive System | Hydraulic |
| Speed | 0.3 to 0.5 m/s |
| Rated Load | Up to 200 kg |
| Shaft Type | polycarbonate,360 degree parallel visible |
| Cabin | Circular Glass w/ Premium Interior |
| Lighting | Bespoke LED Interior Package |
| Certification | EU Machinery Directive 2006/42/EC |
ICON 102 Polycarbonate Luxe
The ICON 102 combines the visual drama of the circular ICON design with a hydraulic drive system and a polycarbonate cabin — delivering a luxurious, crystal-clear panoramic experience. Requiring only a 150mm pit depth, the ICON 102 is the ultimate retrofit luxury elevator, perfect for heritage buildings, renovated bungalows, and hospitality venues where a deep pit is not possible.
| Parameter | Specification |
|---|---|
| Design Form | Circular Polycarbonate |
| Drive System | Hydraulic (HPU) |
| Rated Load | Up to 300 kg |
| Max Stops | 4 Stops |
| Pit Depth | 150 mm only |
| Cabin Material | High-clarity Polycarbonate |
| Best For | Heritage / Retrofit / Hospitality |
| Certification | EN 81-41 Platform Lift Standard |
UVS 1000
The UVS 1000 is UKIO's premium elevator — combining the visual drama with a full-glass polycarbonate shaft for a 360-degree viewing experience. Installed in luxury villas, designer restaurants, and high-end commercial lobbies, the UVS 1000 creates an architectural centrepiece that transforms vertical transportation into a truly unforgettable visual statement.
| Parameter | Specification |
|---|---|
| Drive System | Hydraulic/traction |
| Speed | 0.3 to 0.5 m/s |
| Rated Load | Up to 250 kg |
| Shaft Type | polycarbonate or glass as per requirement,tailor made. |
| Cabin | premium customized interior |
| Lighting | Bespoke LED Interior Package |
| Certification | EU Machinery Directive 2006/42/EC |

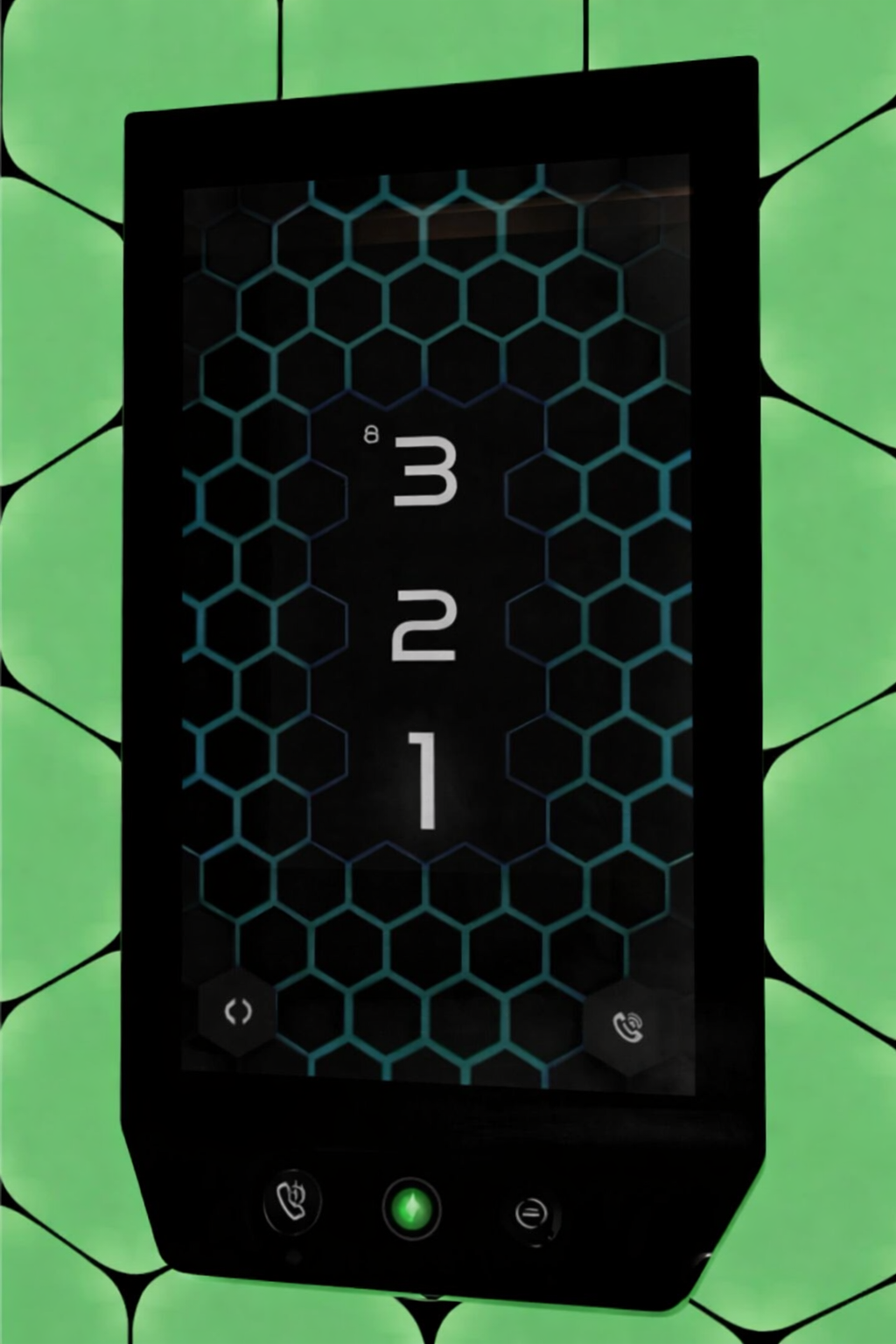

Smart Light Technology with Cloud
Elevating Experience with Intelligence & Safety
Welcome to UKIO Elevator, where innovation meets elegance. We are proud to introduce Smart Light Technology, with Cloud — a next-generation smart system designed to offer seamless operation, enhanced safety, and distinctive style for modern homes.
Records up to 60 faults with date and time for quick diagnosis & maintenance, minimising downtime and enabling proactive servicing.
Enables remote monitoring, customisation of floors, access control & usage time — all managed wirelessly from your smartphone.
Ensures a smooth ride with minimal jerk and precise floor stopping — delivering a superior passenger experience every time.
Prevents false calls — simply double press to cancel any floor call at any time, improving efficiency and user convenience.
Brake failure safety system prevents freewheeling & ensures complete passenger safety in all mechanical fault scenarios.
Not Sure Which Model Suits You?
Our technical consultants can assess your building, understand your usage requirement, and recommend the perfect UKIO solution for you — free of charge.
